Fusion: A Key Component of Binocular Vision

Fusion is the process by which the brain combines the visual information from both eyes into a
single, unified image. It is a critical aspect of binocular vision, ensuring clarity, depth perception,
and accurate spatial orientation. The ability to achieve fusion depends on proper alignment of the eyes
and intact neural pathways. In this blog we are going to explore different aspects of fusion.

Fusion
Fusion is a critical function of binocular vision that enables the perception of a single, clear
image despite each eye receiving a slightly different perspective. It occurs at a sensory and motor
level, ensuring that the images from both eyes are aligned properly. Sensory fusion is the neural
process that combines the images from each eye into one coherent perception. Motor fusion
refers to the coordination of extraocular muscles to align the eyes properly, preventing double
vision (diplopia). The brain's ability to achieve fusion is vital for tasks requiring depth
perception, such as reading, driving, and sports.

Types of Fusion
Fusion is categorized into three main types based on the depth of neural processing:
1. First-Degree Fusion (Simultaneous Perception): This involves perceiving images from
both eyes simultaneously without necessarily merging them into one. For instance, seeing
two separate pictures with red and green filters.
2. Second-Degree Fusion (Flat Fusion): At this level, the brain merges similar images
from both eyes into a single, two-dimensional perception without depth.
3. Third-Degree Fusion (Stereopsis): This advanced level integrates depth information,
creating a three-dimensional perception.

Tests for Fusion
Orthoptists/Optometrists use a variety of clinical tests to evaluate fusion and its components:

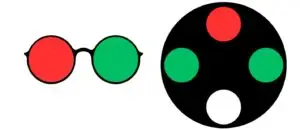

Worth Four Dot Test

 Assesses fusion by presenting four dots (two green, one red, and one white) through red-green glasses
 Identifies suppression, it’s depth and severity also diplopia (double vision)

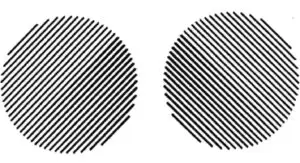

Bagolini Striated Lens Test

 Evaluates binocular function under natural conditions
 Patients describe the lines they see, indicating suppression or misalignment (squint) also
Anomalous retinal correspondence (will be explained later in this blog)

Synoptophore

 Measures all degrees of fusion
 Measures fusion capabilities, including motor and sensory components
 Presents different images (slides) with adjustable disparity to assess all degree of fusion

Stereopsis Tests

 Tools like the Titmus Fly or Random dot tests measure depth perception, a hallmark of third-degree fusion
Vergence Facility Testing
 Evaluates the ability to maintain fusion dynamically using prisms that alternate between
convergence and divergence demands

Mechanism of Fusion
Sensory Mechanisms
Fusion relies on retinal correspondence—each eye has corresponding retinal points that send signals to the brain, allowing for unified perception. The visual cortex plays a key role in integrating these signals, aided by Panum’s fusional areas, which allow for slight disparities in image location while maintaining single vision.
 Retinal Correspondence: The brain pairs images from corresponding retinal points of each eye
 Neural Integration: Signals from both eyes are processed in the visual cortex, where they are fused into a single perception

Motor Mechanisms
 Convergence and Divergence: The extraocular muscles adjust eye positions to align images on corresponding retinal points
 Fusional Vergence: Compensates for small misalignments to maintain single vision

Importance of Fusion
Fusion is essential for:
 Depth Perception – Crucial for activities like driving, sports, and spatial awareness
 Reading and Learning – A stable fusion system prevents visual discomfort, fatigue, and difficulties with near work
 Hand-eye Coordination – Important for fine motor skills, such as writing, playing musical instruments, or catching objects
 Prevention of Diplopia (Double Vision) – Ensures a single, clear perception by aligning the eyes properly
 Without fusion, individuals may experience suppression where the brain ignores input from one eye, leading to amblyopia (lazy eye)

How to Experience Fusion in Everyday Life
Fusion is constantly at work in daily life:
 Using 3D Glasses – This technology relies on fusion to create depth perception in movies
 Looking at Distant Objects – Fusion allows us to focus smoothly between near and far objects without seeing double
 Covering One Eye Momentarily – Removing one eye’s input disrupts fusion, making depth perception less effective
 Physiological Diplopia – Holding a finger close to the nose while focusing on a distant
object reveals how fusion keeps relevant objects single while allowing double vision in peripheral vision.
Fusion is not only foundational to binocular vision but also to our ability to interact with the
three-dimensional world. Proper testing and training can help individuals maintain strong fusion,
reducing eye strain and improving overall visual comfort.
